Note: Audio interface connected to the computer after the sound is small, no sound please see the following documents
Part 1：Audio interface problem elimination

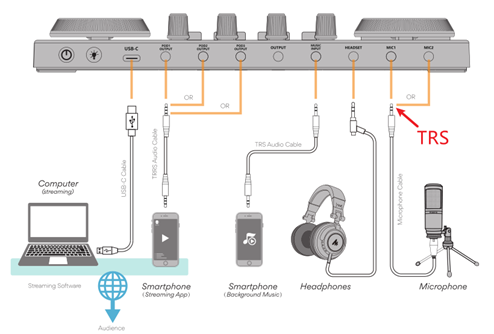

1. Check if the audio cable interface is correct
l Microphone is connected to the audio interface using the TRS plug, and ensure that the connection is solid and the connection jack is correct
l Computer：Replace a USB port connection (please do not use a hub) ，If it is a PC, you need to plug the USB into the back end of the host
l Mobile Phone：Please replace the other audio cable, if you use an adapter cable, please confirm that the adapter cable is available
Tips：Using the phone recorder recording, in the recording, blow or tap on the microphone at the bottom of the phone, there is a level display is not connected successfully (reconnect or replace the audio cable)
2. Adjust the audio interface knob
l Adjust to the maximum to make sure the sound card functions properly
Please adjust the Mic knob to the maximum
Please adjust the Monitor fader to the maximum
l Please adjust the REC to the maximum --- Audio Output Control
(Note! Please keep it to the maximum to avoid forgetting)
Part 2：Computer audio problems troubleshooting
Windows
1. Windows basic settings

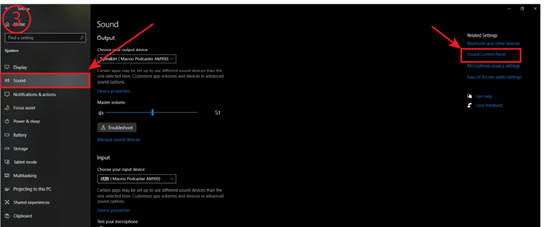

STEP 1: Go to “Windows setting”.
STEP 2: Select “System”.
STEP 3: Select “Sound” and go to “Sound Control Panel”.
STEP 4: Set AM200 as default recording device in “Recording” of sound setting.
STEP 5: Double click “Maono AM200” go to “Properties”, select “Levels” and set it to 100.
STEP 6: Set the AM200 as default playback device in “Playback” of sound setting.
l After the basic setup is successful, please use the recorder to record (if you don't have it, please download it through Microsoft store) and test if it is back to normal. If it does not work properly
Please contact：Support@maono.com
MacOS
1．macOS basic setting
Step 1: Click on Apple Logo in top-menu bar and select System Preferences in the drop-down menu.
Step 2: On System Preferences screen, click on the Sound tab.

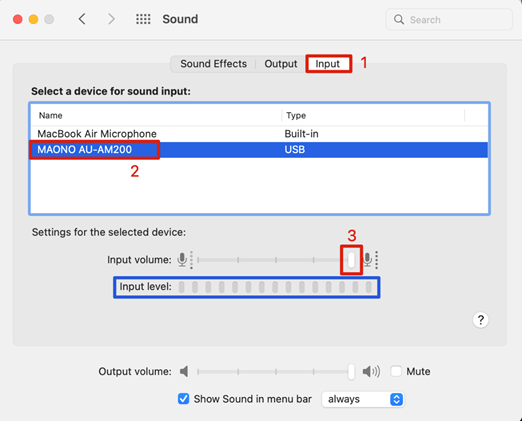

Step 3: On the next screen, switch to Input tab
Select your AM200 from the list and make sure the input volume is set to the maximum level.
After setting, input level will show you the input sound level

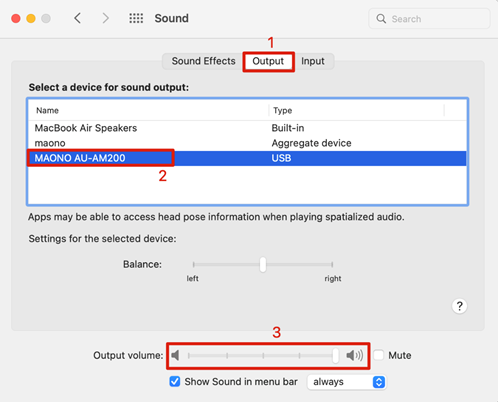

Click on the output tab
Select AM200 as the sound output
Adjust to maximum at output volume level
